EDMAPLAC 450 - Rack and pinion panel lifter

Gencod : 3476060026736 / Weight : 54.000 kg

Power drill assistance available.
MAXIMUM LOAD : 80 KG
MAXIMUM HEIGHT WITH EXTENSION : 4,50 M
MAXIMUM HEIGHT IN VERTICAL POSITION WITH 2.50 M HEIGHT PANEL : 5,75 M

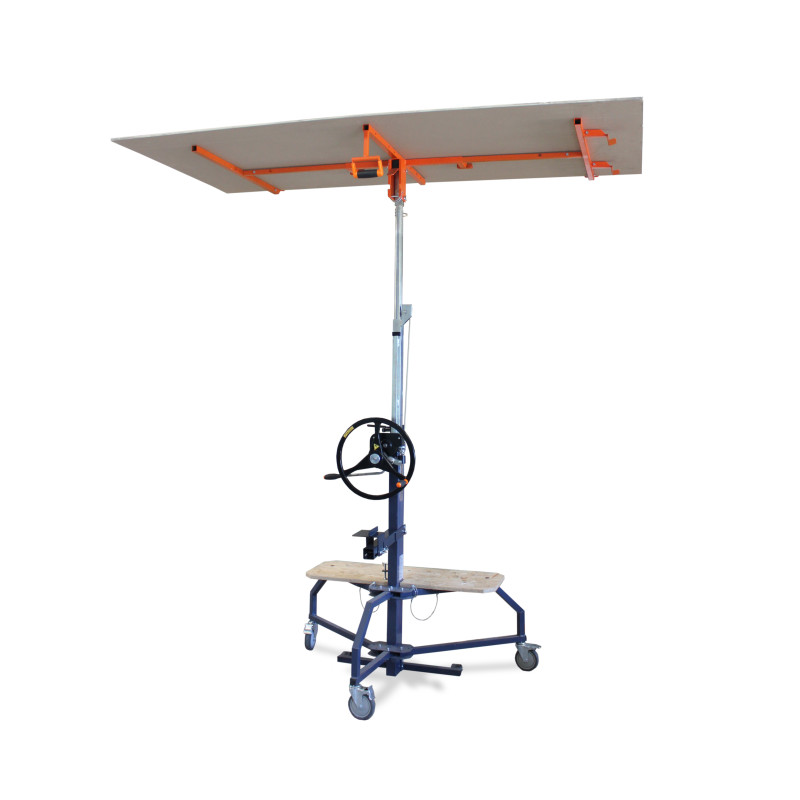

To lift plasterboard in every positions : horizontal (ceiling installation), angled (sloping ceiling installation) and vertical (wall installation).

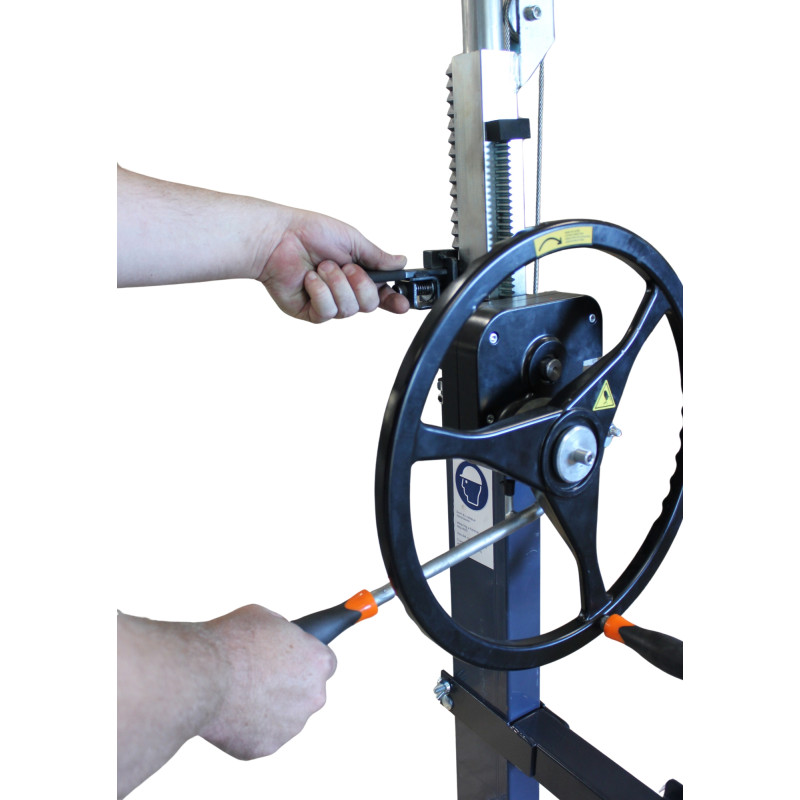

Innovative braking system with 2 handles (main brake + safety brake) to lower the panel quickly under control.

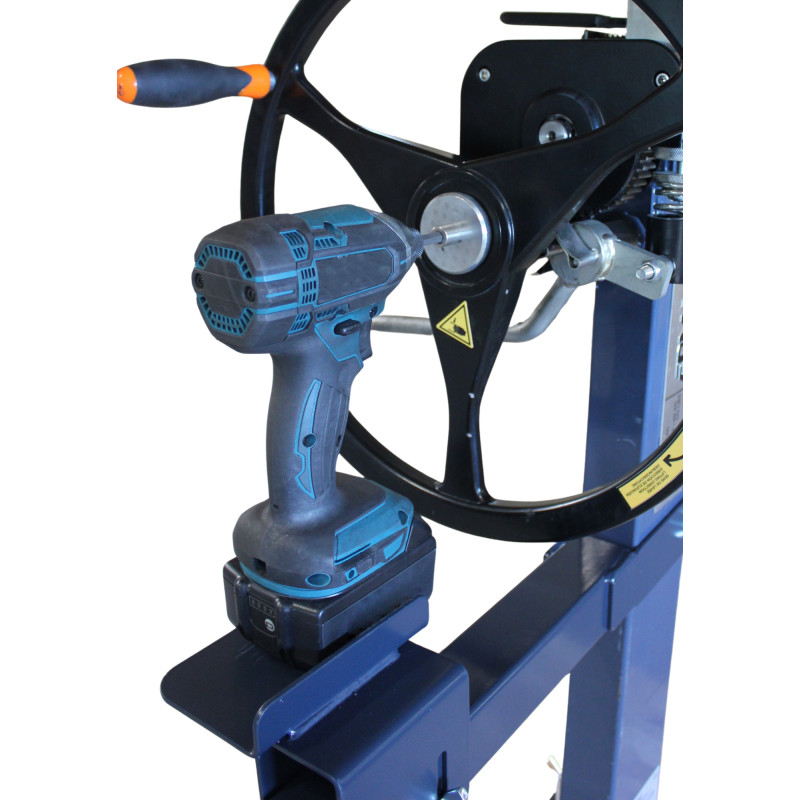

Automatic operation thanks to power drill assistance.
Its rack and pinion system allows to lift plasterboards with less effort than other panel lifters.
Ergonomic design with bi-material handle to tilt the top rack up to vertical position.
Tool carrier wooden board included.
Easy to pass through doorway thanks to its foldable feet.
3 wheels including 2 wheels with brake.
No noise while lifting on job sites.
CE certified.
In conformity with European directive "MACHINERY"-2006/42/CE.
Approved by the VERITAS conformity report# 628 8214-1.

SPECIFICATIONS :
- Max. board dimensions : 1,20 x 3,60 m
- Min. board dimensions : 0,15 x 0,60 m
- Max. height with extension part : 4,50 m
- Max. height without extension part : 3,50 m
- Min. height : 161 cm
- Max. height for vertical lifting with 2,50 m height board : 5,75 m
- Board loading height without extension part : 84 cm
- Min. width in moving/storage position : 63 cm
