New EDMAPLAC CABLE - Winch panel lifter
Situation pictures
  • Click to enlarge

  • EDMAPLAC CABLE - Lève plaque à treuil
  • EDMAPLAC CABLE - Lève plaque à treuil

268655

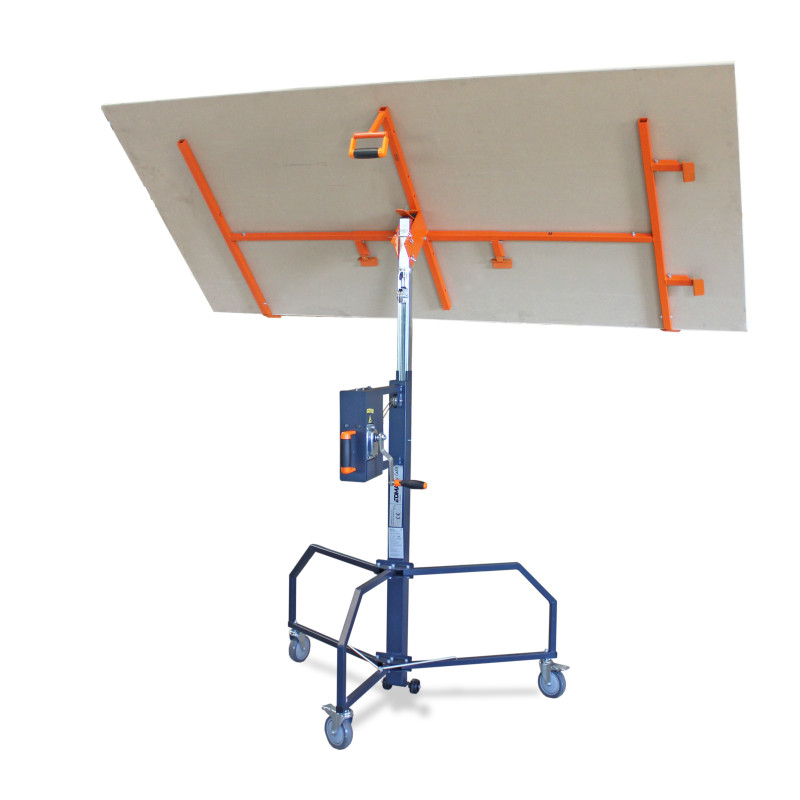

EDMAPLAC CABLE - Winch panel lifter

Gencod : 3476062686556 / Weight : 42.500 kg

360° free rotating head.
Lifts the plasterboard in horizontal and angled position.
Double cable for lifting and lowering = safety.
Ball bearing pulleys for less effort.
Winch with bi-material handle.
Ergonomic tilting handle for easy loading of the plasterboard.
Smaller size, lighter, less bulky.
Easy door passage thanks to its folding side feet.
Equipped with 3 wheels, 2 with brake and 2 stabilization/transport wheels.
Delivered assembled except for the head.
CE certification.
Complies with European directive "MACHINERY" - 2006/42/CE.
Approved by the VERITAS conformity report #10673478-1.

SPECIFICATIONS :
- Max. load : 60 kg.
- Max. board dimensions : 1,20 x 3,60 m.
- Min. board dimensions : 0,15 x 0,60 m.
- Max. height : 3,50 m.
- Min. height : 1,6 m.
- Board loading height : 80 cm.
- Dimensions in moving/storage position (length x width x depth) : 131 x 85 x 25 cm.
